API Mud Shale Shaker TR Solids Control Drilling Shale Shaker

High-Efficiency Mud Shale Shaker for Drilling Fluids – TR SolidsControl

High-Performance Mud Shale Shaker – TR SolidsControl

The TR SolidsControl mud shale shaker is a high-efficiency solids control equipment designed for drilling fluid treatment. It plays a crucial role in removing solid particles from drilling mud, ensuring the smooth operation of the entire solids control system. The shaker adopts linear motion vibration, ensuring effective separation and stable performance. It is widely used in oil & gas drilling, HDD, tunneling, and other drilling operations.

Attributes

• Model: TRZS703, TRZS2000, TRZS585
• Vibration Mode: Linear Motion
• Motor Power: 2×1.5KW (TRZS703), 2×1.72KW (TRZS2000 & TRZS585)
• Vibration Intensity: ≤7.0G (TRZS703), ≤7.5G (TRZS2000 & TRZS585)
• Amplitude: 6.0~7.2mm
• Processing Capacity: 527GPM (TRZS703), 615GPM (TRZS2000 & TRZS585)
• Deck Adjustment Range: -1°~5°
• Screen Quantity: 3 (TRZS703 & TRZS2000), 4 (TRZS585)
• Power Supply: 380V/50HZ, 460V/60HZ or Customized
• Noise Level: <85db
• Explosion-proof Standard: ExdIIBt4 / IEC EX/ ATEX
• Weight: 1550kg (TRZS703), 1850kg (TRZS2000), 1750kg (TRZS585)

Technical Specifications

Key Features

• Adjustable vibration intensity for different working conditions.
• Uniform vibration trajectory, ensuring optimal separation efficiency.
• Multiple screen options available for different filtration requirements.
• High-performance vibration motors ensure stable operation.
• Robust construction for long service life and minimal maintenance.
• Explosion-proof design, suitable for hazardous environments.

Applications

• Oilfield Drilling – Efficient solids removal from drilling fluids.
• Horizontal Directional Drilling (HDD) – Ensures clean mud for drilling operations.
• Tunneling & Infrastructure Projects – Used in slurry separation systems.
• Environmental Waste Treatment – Effective in solid-liquid separation.

Certifications

• API & ISO 9001 Certified – Ensures compliance with international standards.
• ATEX & IEC EX Explosion-proof Certification – Safe for hazardous areas.

FAQ

• How does the shale shaker work? It uses linear motion vibration to separate solid particles from drilling fluid, ensuring cleaner mud returns to the system.
• What types of screens are compatible? It supports a variety of API-compliant screens, including composite and steel frame screens.
• What is the advantage of the adjustable deck angle? The adjustable deck allows for optimizing screening efficiency based on different drilling conditions.
• Is it suitable for offshore drilling? Yes, the explosion-proof design and durable construction make it ideal for offshore and onshore applications.
• What maintenance is required? Regular inspection of screen panels, motors, and vibration components ensures long-term reliability.

Advantages and Services

• Customizable configurations available to suit different project requirements.
• Technical support, spare parts, and after-sales service provided.
• Fast delivery and global shipping options available.

API Mud Shale Shaker

Shale Shaker TR Solids Control

API Drilling Shale Shaker

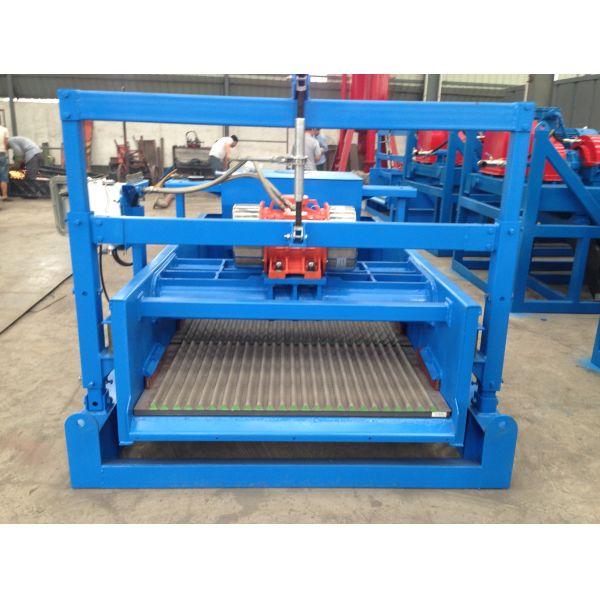

API Mud Shale Shaker TR Solids Control Drilling Shale Shaker Images
